A dynamic powder classifier is a mechanical separation device that uses a rotating cage or rotor combined with an air stream to split ground material into a fine powder stream and a coarse stream that is sent back for further grinding. Rotor speed is the primary control variable, and by adjusting it operators can shift the cut point up or down without stopping the mill, which makes the dynamic classifier the standard choice wherever a grinding circuit needs precise, repeatable fineness control rather than a fixed separation point. Main Components of a Dynamic Powder Classifier A dynamic powder classifier combines rotating and stationary parts inside a single housing, and each part plays a defined role in separating particles by size. Rotating cage or rotor, made of classification blades arranged around a central shaft that spins to reject oversized particles by centrifugal force Guide vanes or volute housing, which direct the incoming air and particle stream into an even, swirling flow before it reaches the rotor Variable speed drive motor, usually controlled remotely, that sets rotor speed and therefore the fineness cut point Coarse powder outlet and return chute, which sends rejected coarse particles back into the mill for additional grinding Fine powder outlet, connected to the downstream collection system such as a cyclone or bag filter Working Principle and Separation Mechanism Ground material leaves the mill suspended in an air stream and enters the classifier housing, where guide vanes convert the flow into a swirling pattern around the rotating cage. Fine particles follow the air stream through the rotor blades and exit through the fine powder outlet, while coarser particles are thrown outward by centrifugal force, strike the cage, lose momentum, and fall down into the coarse return chute. Two forces determine the cut point Every particle inside the classifier is acted on by centrifugal force pushing it outward and drag force from the air stream pulling it inward toward the rotor axis, and the balance between these two forces sets the exact particle size that separates fine product from coarse reject. Higher rotor speed increases centrifugal force, pushing more mid sized particles back into the coarse stream and producing a finer product Lower rotor speed reduces centrifugal force, allowing more mid sized particles through with the fine stream and producing a coarser product Air volume through the housing works together with rotor speed, since higher air flow increases drag force and pulls slightly larger particles into the fine stream Common Types of Dynamic Powder Classifiers Dynamic classifiers are generally grouped by the way the rotor and air flow are arranged, and the choice depends on the required fineness range and the grinding circuit layout. Comparison of common dynamic powder classifier configurations used in grinding circuits Type Flow Arrangement Typical Fineness Control Common Placement Turbo type classifier Horizontal vortex flow Fine to medium range Ball mill closed circuit systems Air swept coal mill classifier Combined coarse separation and vortex flow Medium to coarse range Coal grinding and power plant systems Static plus dynamic combined classifier Pre separation vanes followed by rotor Wide adjustable range Cement vertical roller mill systems MX Series Coal Mill Dynamic Classifier Overview The MX series is a coal mill dynamic classifier developed through the introduction, digestion, and integration of advanced overseas dynamic classifier designs for air swept coal mills. It integrates coarse powder separation with horizontal vortex separation in a single unit, combining two separation stages that are often handled by separate equipment in older classifier designs. Core technical specifications of the MX series coal mill dynamic classifier Parameter Specification Feed particle size 0.5 millimeters or smaller Production capacity 10 to 60 tonnes per hour Applicable materials Cement, pulverized coal, calcium based powder, silica powder, titanium dioxide, iron ore, quartz stone, construction waste, gold ore Application fields Cement grinding, new materials, dry mortar, ceramics, rubber, power generation, oil extraction, aerospace Product Advantages of the MX Series Classifier High output across a wide operating range The classifier structure allows air volume and output to be adjusted flexibly across a wide range without reducing classification efficiency. System output typically increases by 10 to 15 percent once the MX series classifier replaces an older fixed cut point design in the same grinding circuit. Low resistance and lower energy consumption An optimized uniform flow field design improves classification efficiency while reducing equipment resistance, which in turn lowers the overall energy consumption of the grinding system compared with classifiers that create turbulent or uneven internal flow patterns. Simple operation and convenient fineness adjustment The main drive motor can be controlled remotely from the control room, so operators can adjust rotor speed on the fly to meet changing fineness requirements without stopping production or entering the equipment area. Low wear and reduced maintenance cost A novel internal vortex de splitting device allows airflow inside the rotor to rise without rotating together with the cage, which reduces the kinetic moment acting on the rotor. This lowers the driving power required and reduces wear on rotating parts, and sections exposed to highly abrasive material are treated with wear resistant materials and processes to further extend service life. Industrial Applications of Dynamic Powder Classifiers Dynamic powder classifiers are installed wherever a grinding process needs a controllable, adjustable particle size cut rather than a fixed separation point. Cement grinding systems, where fineness directly affects setting time and early strength of the final cement product Pulverized coal preparation for power generation, ensuring coal particles are fine enough for stable combustion in boilers New building material and dry mortar production, where a controlled particle size distribution affects workability and finish Ceramic and rubber raw material processing, requiring consistent fine powder for uniform product properties Mineral and ore processing, including quartz stone, iron ore, and gold ore where classification improves downstream recovery rates Specialized fields such as oil extraction and aerospace material preparation, where powder fineness tolerances are especially tight Key Parameters When Selecting a Dynamic Powder Classifier Choosing the right classifier for a grinding circuit depends on matching several operating parameters to the mill and the target product rather than looking at capacity alone. Feed material and target fineness Confirm the maximum feed particle size entering the classifier, and set the target fineness range in the units used by the plant, since this determines the required rotor speed range and blade configuration. Air volume and system resistance Classifier resistance affects the total draft fan power needed across the grinding system, so a classifier with a lower pressure drop at the same air volume reduces overall energy consumption for the plant. Circulating load and return efficiency An efficient coarse return path keeps circulating load within a manageable range, and a classifier that sends oversized material back cleanly avoids overloading the mill with material that should have already reported to the fine stream. Maintenance Guidance for Long Term Reliability A dynamic powder classifier runs continuously alongside the mill, so a defined maintenance routine keeps classification accuracy stable and prevents unplanned downtime. Inspect rotor blades periodically for wear, since blade wear gradually shifts the fineness cut point even when the speed setting stays the same Check the drive motor bearings and lubrication on a fixed schedule, because bearing failure is one of the most common causes of unplanned classifier downtime Monitor the coarse return chute for blockages, which can build circulating load and reduce mill throughput if not cleared promptly Verify rotor speed sensor and control loop accuracy, since a drifting speed signal will cause fineness to drift without any visible mechanical fault Replace wear resistant liners in high abrasion zones before they fail completely, especially in circuits processing quartz stone or iron ore Common Problems and Practical Troubleshooting Frequent operating issues in dynamic powder classifiers and their typical causes Problem Likely Cause Suggested Action Product fineness drifting coarser Worn rotor blades or reduced rotor speed Inspect blades for wear and confirm actual rotor speed against the control setpoint Rising circulating load Blocked coarse return chute or overly fine cut setting Clear the return path and review rotor speed against target fineness High system resistance Uneven internal air flow or buildup on guide vanes Clean guide vanes and inspect for material buildup inside the housing Excessive motor power draw Bearing wear or rotor imbalance Check bearing condition and confirm rotor balance during the next scheduled stop Recent Developments in Dynamic Powder Classifier Technology Recent improvements to dynamic powder classifiers have concentrated on practical operating gains rather than a change to the basic separation principle. Combined coarse and vortex separation in one unit Integrating coarse powder separation with horizontal vortex separation inside a single classifier, as used in the MX series design, reduces the number of separate stages a grinding circuit needs while improving overall classification sharpness. Remote and automated fineness control Remote control of the main drive motor lets plants adjust fineness targets from the control room in response to downstream quality feedback, shortening the response time compared with manual mechanical adjustment. Internal flow field optimization Uniform flow field designs that reduce turbulence inside the classifier housing are lowering resistance and energy consumption across new classifier models, which directly reduces the electricity cost of running the grinding system. Frequently Asked Questions About Dynamic Powder Classifiers What is the difference between a dynamic and a static powder classifier A dynamic classifier uses a rotating cage or rotor to actively control the fineness cut point through adjustable speed, while a static classifier relies only on fixed guide vanes and air flow, which means its cut point cannot be adjusted without physically changing the vane configuration. How does rotor speed affect product fineness Increasing rotor speed raises the centrifugal force acting on particles, sending more mid sized material back for regrinding and producing a finer final product, while decreasing rotor speed produces a coarser product with a wider particle size range. What feed particle size can the MX series classifier accept The MX series coal mill dynamic classifier accepts feed particle sizes of 0.5 millimeters or smaller and handles production capacities ranging from 10 to 60 tonnes per hour depending on the material and target fineness. Which materials can be processed with a dynamic powder classifier Typical materials include cement, pulverized coal, calcium based powder, silica powder, titanium dioxide, iron ore, quartz stone, construction waste, and gold ore, covering applications from cement grinding to power generation and mineral processing. Why does classifier resistance matter for energy consumption Higher classifier resistance forces the system draft fan to work harder to maintain the required air volume, so a lower resistance design directly reduces the electrical power consumed by the fan and lowers the overall energy cost of the grinding circuit. How much can a modern classifier improve system output Replacing an older fixed cut point classifier with a modern adjustable design such as the MX series can increase overall system output by approximately 10 to 15 percent while maintaining classification efficiency, based on typical performance reported for coal mill retrofit projects. .dc-article { font-size: 16px; line-height: 2; color: #333333; text-align: left; } .dc-article p, .dc-article h2, .dc-article h3 { margin-bottom: 15px; } .dc-article .dc-h2 { font-size: 22px; font-weight: bold; text-align: left; color: #0b53ac; } .dc-article .dc-h3 { font-size: 16px; font-weight: bold; text-align: left; color: #0b53ac; } .dc-article .dc-list li { margin-bottom: 5px; } .dc-article.dc-intro { border-left: 4px solid #0b53ac; background-color: #f2f6fc; padding: 20px; margin-bottom: 40px; } .dc-article.dc-intro p { margin-bottom: 0; } .dc-article.dc-components { background-color: #ffffff; border: 1px solid #d9e3f0; border-radius: 8px; padding: 20px; margin-bottom: 40px; } .dc-article.dc-working { background-color: #f8fafd; padding: 20px; border-top: 3px solid #0b53ac; border-bottom: 3px solid #0b53ac; margin-bottom: 40px; } .dc-article .dc-list-ordered li { background-color: #eef3fb; padding: 10px 15px; border-radius: 6px; margin-bottom: 8px; } .dc-article.dc-types { margin-bottom: 40px; } .dc-article.dc-product { background-color: #ffffff; border: 2px solid #0b53ac; border-radius: 10px; padding: 25px; margin-bottom: 40px; } .dc-article.dc-advantages { background-color: #f2f6fc; border-radius: 10px; padding: 25px; margin-bottom: 40px; } .dc-article.dc-applications { background-color: #ffffff; border-left: 6px solid #0b53ac; padding: 20px; margin-bottom: 40px; } .dc-article .dc-list-apps li { margin-bottom: 10px; } .dc-article.dc-selection { background-color: #ffffff; border: 1px dashed #0b53ac; border-radius: 8px; padding: 20px; margin-bottom: 40px; } .dc-article.dc-maintenance { background-color: #f8fafd; padding: 20px; border-radius: 8px; margin-bottom: 40px; } .dc-article .dc-list-maintenance li { border-bottom: 1px solid #d9e3f0; padding-bottom: 8px; margin-bottom: 10px; } .dc-article.dc-trouble { margin-bottom: 40px; } .dc-article.dc-trends { background-color: #eef3fb; border-radius: 10px; padding: 25px; margin-bottom: 40px; } .dc-article.dc-faq { background-color: #ffffff; border: 1px solid #d9e3f0; border-radius: 8px; padding: 25px; margin-bottom: 40px; } .dc-article table.dc-table { box-shadow: 0 0 0 1px #d9e3f0; } .dc-article table.dc-table thead th { background-color: #0b53ac; color: #ffffff; } .dc-article table.dc-table tbody tr:nth-child(even) { background-color: #f2f6fc; } @media (max-width: 768px) { .dc-article { font-size: 16px; line-height: 2; } .dc-article .dc-h2 { font-size: 20px; } .dc-article .dc-h3 { font-size: 16px; } .dc-article.dc-intro, .dc-article.dc-components, .dc-article.dc-working, .dc-article.dc-product, .dc-article.dc-advantages, .dc-article.dc-applications, .dc-article.dc-selection, .dc-article.dc-maintenance, .dc-article.dc-trends, .dc-article.dc-faq { padding: 15px; } .dc-article table.dc-table, .dc-article table.dc-table thead, .dc-article table.dc-table tbody, .dc-article table.dc-table th, .dc-article table.dc-table td, .dc-article table.dc-table tr { display: block; width: 100%; } .dc-article table.dc-table thead { display: none; } .dc-article table.dc-table td { text-align: left; border: none; border-bottom: 1px solid #d9e3f0; padding: 8px 0; } .dc-article table.dc-table tr { margin-bottom: 15px; border-bottom: 2px solid #0b53ac; } }

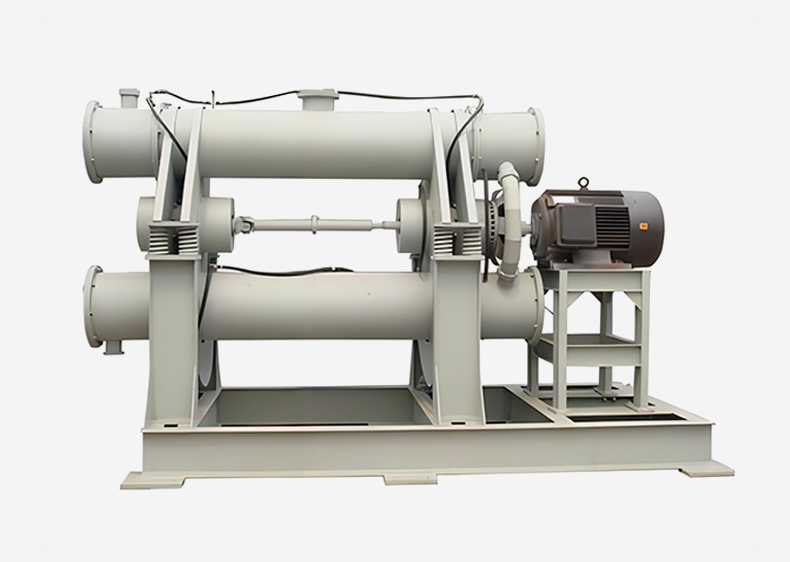

A vibrating mill is a grinding machine that uses rapid mechanical vibration instead of slow drum rotation to break down and fine grind bulk materials. The vibrating chamber typically oscillates at 1000 to 3000 cycles per minute, which forces the grinding media inside the tube, such as steel rods, steel balls, or ceramic cylpebs, to impact and rub against the feed material thousands of times per minute. This action produces very fine, narrow particle size distributions in a much shorter processing cycle than a conventional tumbling ball mill, which is why vibrating mills are widely chosen for ultra fine grinding, mechanical activation, and dry or wet dispersion tasks across mining, ceramics, chemical, and metallurgical industries. Main Components of a Vibrating Mill Every vibrating mill, regardless of size or manufacturer, is built around five core parts that work together to generate and transmit vibration energy into the grinding chamber. Grinding tube or cylinder, usually U shaped or tubular, lined with wear resistant rubber, manganese steel, or ceramic plates depending on the material being processed Vibration exciter, an unbalanced shaft assembly driven by an electric motor that converts rotary motion into a controlled circular or elliptical vibration Grinding media, including steel rods, steel balls, or ceramic cylpebs that fill roughly 70 to 85 percent of the tube volume Spring support system, which isolates vibration from the base frame and protects the surrounding foundation and structure Drive motor and coupling, generally a standard three phase motor connected through a flexible coupling to reduce shock loading on the shaft Working Principle and Grinding Mechanism The grinding tube of a vibrating mill is mounted on springs and connected to an eccentric shaft. When the motor rotates the shaft, the unbalanced mass creates a rotating centrifugal force that pushes the entire tube into a small, fast, circular vibration path rather than a full rotation. Because the tube itself barely moves in absolute terms, the grinding media inside experiences a much higher relative acceleration, often three to ten times the acceleration of gravity, compared with the media inside a rotating ball mill which is governed mainly by gravity and drum speed. Three grinding actions happen simultaneously Inside the tube, the media and material are subjected to impact, attrition, and shear at the same time, which is the main reason vibrating mills reach fine particle sizes so quickly. Impact grinding, where media particles collide directly with feed material and break larger particles into smaller fragments Attrition grinding, where layers of media rub against each other and against the material, wearing particle surfaces down gradually Shear grinding, produced by the sliding motion between adjacent layers of grinding media moving at slightly different velocities Common Types of Vibrating Mills Vibrating mills are generally grouped by tube shape and grinding media, and each configuration suits a different combination of feed size, target fineness, and material hardness. Comparison of common vibrating mill configurations used in industrial fine grinding Type Grinding Media Typical Output Fineness Common Use Tube type vibrating mill Steel rods or cylpebs Down to 10 microns Mineral powder, quartz, feldspar U shaped vibrating mill Steel balls 5 to 45 microns Metal powder, ceramic raw material Wet vibrating mill Ceramic beads Sub micron range Pigment, coating, battery slurry dispersion Two tube vibrating mill Steel rods 15 to 60 microns Large capacity mineral processing lines Vibrating Mill Compared With Ball Mill and Rod Mill Customers evaluating fine grinding equipment often compare a vibrating mill against a traditional tumbling ball mill or rod mill. The main differences come down to grinding intensity, energy efficiency, and particle fineness. Grinding intensity and speed A vibrating mill applies grinding force at a much higher frequency than a rotating drum, so it can reach the same fineness target in a fraction of the residence time. A batch that needs several hours in a conventional ball mill can often be processed in 20 to 60 minutes inside a vibrating mill when grinding the same mineral to a comparable micron size, according to equipment performance data commonly published by Chinese grinding equipment manufacturers. Energy consumption per unit output Because the media achieves higher acceleration with less rotating mass to overcome, vibrating mills generally consume less specific energy per tonne of product for ultra fine grinding tasks, although the exciter motor still draws continuous power during operation and total energy savings depend heavily on feed hardness and target fineness. Footprint and installation Vibrating mills are usually more compact than ball mills of comparable output, since they do not need a large rotating drum shell, but they do require a properly designed spring foundation to absorb vibration and prevent it from transmitting into the workshop floor. Industrial Applications of Vibrating Mills Vibrating mills are used wherever a process needs fine or ultra fine particles with a narrow size distribution, and the specific application usually determines the tube lining material, grinding media type, and whether the process runs dry or wet. Non metallic mineral processing, including quartz sand, kaolin, talc, calcium carbonate, feldspar, and graphite powder production Metal and alloy powder preparation, such as flaky aluminum powder, copper powder, and iron powder used in coatings and powder metallurgy Ceramic and refractory raw material grinding, where uniform particle size directly affects sintering quality Chemical and pigment dispersion, mixing solid pigments into liquid carriers for paints, inks, and coatings Battery material processing, fine grinding of electrode materials such as graphite and lithium compound precursors Mechanical activation research, where vibration energy alters particle surface structure to improve reactivity in later chemical steps Advantages of Using a Vibrating Mill Key operating advantages of vibrating mills over conventional grinding equipment Advantage Practical Benefit High frequency vibration Shorter grinding cycle and faster particle size reduction Compact structure Smaller workshop footprint than tumbling mills of similar output Narrow particle distribution More consistent product quality with fewer oversize particles Flexible wet or dry operation Adaptable to different downstream process requirements Low media consumption Reduced replacement cost for grinding rods, balls, or beads over time Key Technical Parameters When Selecting a Vibrating Mill Choosing the right vibrating mill model depends on more than tube volume alone. Buyers should evaluate the following parameters together with their supplier before placing an order. Feed and product specification Confirm the maximum feed particle size the mill can accept, the target output fineness in microns, and whether the process needs to run continuously or in batches, since these three factors determine tube length, media loading ratio, and exciter power. Vibration frequency and amplitude Vibration amplitude is usually adjustable within a range of 2 to 8 millimeters by changing the counterweight configuration on the exciter shaft, and a higher amplitude generally increases grinding intensity but also increases wear on the tube lining and media. Material of tube lining Manganese steel liners suit abrasive mineral feeds, rubber liners reduce metal contamination for chemical or pigment applications, and ceramic liners are preferred when even trace iron contamination would affect product purity. Maintenance Tips for Reliable Long Term Operation Vibrating mills operate under continuous cyclic stress, so a consistent maintenance routine extends service life and keeps particle fineness stable batch after batch. Inspect the spring supports regularly for fatigue cracks, since worn springs allow excess vibration to transmit into the foundation Check bearing temperature and lubrication on the exciter shaft, because overheating is often the earliest sign of bearing wear Monitor tube lining thickness periodically and replace worn sections before they perforate, particularly in high abrasion mineral applications Top up grinding media on a defined schedule, since undersized media charge reduces grinding efficiency and increases specific energy use Verify motor alignment and coupling condition, as misalignment accelerates shaft and bearing wear far faster than normal operating loads Common Problems and Practical Troubleshooting Frequent operating issues in vibrating mills and their typical causes Problem Likely Cause Suggested Action Product fineness not reaching target Insufficient media charge or worn media Replenish or replace grinding media to correct loading ratio Abnormal vibration or noise Loose exciter counterweight or bearing wear Stop the mill and inspect exciter fasteners and bearings Reduced throughput over time Lining wear changing internal tube geometry Measure lining thickness and schedule replacement Motor overload trips Excess feed rate or media overcharge Adjust feed rate and confirm media weight against design specification Recent Developments in Vibrating Mill Technology Over the past few years, manufacturers have focused development effort on three practical areas rather than on dramatic redesigns of the core vibration principle. Variable frequency drive control Many current models now pair the exciter motor with a variable frequency drive, letting operators fine tune vibration frequency for different feed materials without changing mechanical counterweights, which shortens changeover time between product batches. Wear resistant lining upgrades Newer ceramic composite and high chromium alloy liners are extending service intervals between lining replacements, which lowers total cost of ownership for continuous high abrasion operations such as quartz and feldspar grinding. Integration with automated particle size monitoring Some production lines now connect online laser particle size analyzers directly to the mill control system, allowing the process to adjust residence time automatically instead of relying only on fixed batch timers. Frequently Asked Questions About Vibrating Mills What particle size can a vibrating mill achieve Depending on the model, media type, and feed hardness, a vibrating mill can typically grind material down to a range of 5 to 45 microns, and specialized wet vibrating mills with ceramic bead media can reach into the sub micron range for pigment and coating dispersion. Is a vibrating mill suitable for wet grinding Yes. Wet vibrating mills are commonly used for pigment, coating, and battery slurry processing, where liquid carrier and solid particles are ground together, and the tube design is adjusted with sealed bearings and corrosion resistant linings for wet service. How does grinding media selection affect performance Steel rods provide strong impact force suited to harder minerals, steel balls give a more balanced impact and attrition action for medium hardness material, and ceramic beads reduce metal contamination while enabling very fine grinding for sensitive chemical products. How often should grinding media be replaced Replacement intervals vary with feed abrasiveness and operating hours, so most operators track media weight loss during scheduled maintenance and top up or replace media once the charge falls below the ratio recommended by the equipment manufacturer. What is the difference between a vibrating mill and a vibrating screen A vibrating mill uses vibration energy together with grinding media to reduce particle size, while a vibrating screen uses vibration only to separate particles by size through mesh openings and does not perform any grinding action. Can a vibrating mill run continuously in a production line Yes, many industrial vibrating mills are designed for continuous feed and discharge operation and are integrated directly into mineral processing or chemical production lines, while smaller units are often operated in batch mode for laboratory or pilot scale testing. .vm-article { font-size: 16px; line-height: 2; color: #333333; text-align: left; } .vm-article p, .vm-article h2, .vm-article h3 { margin-bottom: 15px; } .vm-article .vm-h2 { font-size: 22px; font-weight: bold; text-align: left; color: #0b53ac; } .vm-article .vm-h3 { font-size: 16px; font-weight: bold; text-align: left; color: #0b53ac; } .vm-article .vm-list li { margin-bottom: 5px; } .vm-article.vm-intro { border-left: 4px solid #0b53ac; background-color: #f2f6fc; padding: 20px; margin-bottom: 40px; } .vm-article.vm-intro p { margin-bottom: 0; } .vm-article.vm-components { background-color: #ffffff; border: 1px solid #d9e3f0; border-radius: 8px; padding: 20px; margin-bottom: 40px; } .vm-article.vm-working { background-color: #f8fafd; padding: 20px; border-top: 3px solid #0b53ac; border-bottom: 3px solid #0b53ac; margin-bottom: 40px; } .vm-article .vm-list-ordered li { background-color: #eef3fb; padding: 10px 15px; border-radius: 6px; margin-bottom: 8px; } .vm-article.vm-types { margin-bottom: 40px; } .vm-article.vm-compare { background-color: #ffffff; border-left: 6px solid #0b53ac; padding: 20px; margin-bottom: 40px; } .vm-article.vm-applications { background-color: #f2f6fc; border-radius: 10px; padding: 25px; margin-bottom: 40px; } .vm-article .vm-list-apps li { margin-bottom: 10px; } .vm-article.vm-advantages { margin-bottom: 40px; } .vm-article.vm-selection { background-color: #ffffff; border: 1px dashed #0b53ac; border-radius: 8px; padding: 20px; margin-bottom: 40px; } .vm-article.vm-maintenance { background-color: #f8fafd; padding: 20px; border-radius: 8px; margin-bottom: 40px; } .vm-article .vm-list-maintenance { counter-reset: none; } .vm-article .vm-list-maintenance li { border-bottom: 1px solid #d9e3f0; padding-bottom: 8px; margin-bottom: 10px; } .vm-article.vm-trouble { margin-bottom: 40px; } .vm-article.vm-trends { background-color: #eef3fb; border-radius: 10px; padding: 25px; margin-bottom: 40px; } .vm-article.vm-faq { background-color: #ffffff; border: 1px solid #d9e3f0; border-radius: 8px; padding: 25px; margin-bottom: 40px; } .vm-article.vm-faq .vm-h3 { color: #0b53ac; } .vm-article table.vm-table { box-shadow: 0 0 0 1px #d9e3f0; } .vm-article table.vm-table thead th { background-color: #0b53ac; color: #ffffff; } .vm-article table.vm-table tbody tr:nth-child(even) { background-color: #f2f6fc; } @media (max-width: 768px) { .vm-article { font-size: 16px; line-height: 2; } .vm-article .vm-h2 { font-size: 20px; } .vm-article .vm-h3 { font-size: 16px; } .vm-article.vm-intro, .vm-article.vm-components, .vm-article.vm-working, .vm-article.vm-compare, .vm-article.vm-applications, .vm-article.vm-selection, .vm-article.vm-maintenance, .vm-article.vm-trends, .vm-article.vm-faq { padding: 15px; } .vm-article table.vm-table, .vm-article table.vm-table thead, .vm-article table.vm-table tbody, .vm-article table.vm-table th, .vm-article table.vm-table td, .vm-article table.vm-table tr { display: block; width: 100%; } .vm-article table.vm-table thead { display: none; } .vm-article table.vm-table td { text-align: left; border: none; border-bottom: 1px solid #d9e3f0; padding: 8px 0; } .vm-article table.vm-table tr { margin-bottom: 15px; border-bottom: 2px solid #0b53ac; } }

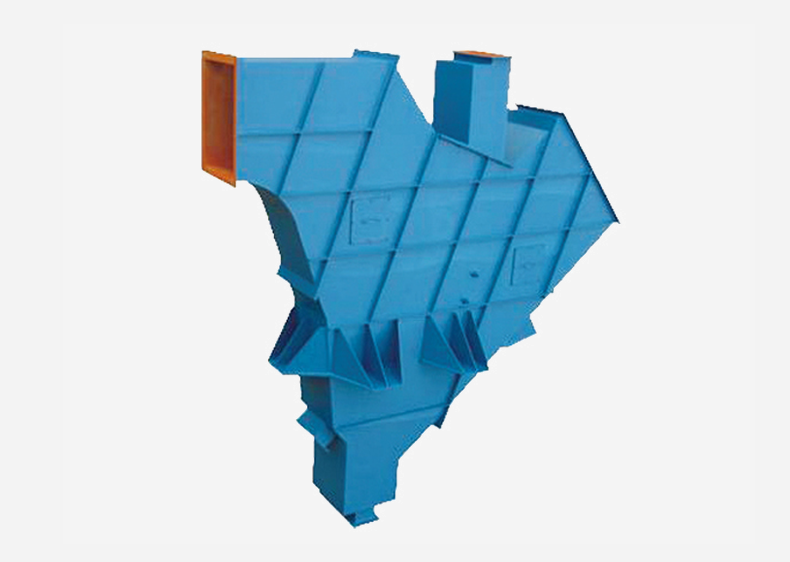

In the raw meal preparation link of cement production, the precision of material classification directly affects the subsequent sintering quality and energy consumption. In recent years, cement classifying equipment has been accelerating its iteration towards the direction of "high precision and high stability". Domestic equipment enterprises have developed a new generation of high-efficiency eddy current classifying equipment based on the characteristics of cement raw meal. By optimizing the structure of the classifying wheel and the design of the air flow field, it realizes the precise separation of particles with different particle sizes in the raw meal.​ Compared with traditional classifying equipment, the control precision of the new classifying equipment for the 0.08mm sieve residue in raw meal has been improved to ±0.5%, and the classification efficiency has increased by 25%. This effectively reduces the problem of increased sintering energy consumption caused by coarse particles entering the rotary kiln. After a large cement group applied this equipment, the homogenization effect of raw meal was significantly improved, the heat consumption of the rotary kiln was reduced by 8kg standard coal per ton of cement, and the production cost was reduced by more than 10 million yuan annually. Industry experts said that with the cement industry's pursuit of low-carbon production, classifying equipment will further integrate intelligent detection technology to realize real-time regulation of raw meal particle size, providing key support for improving quality and reducing costs in cement production.

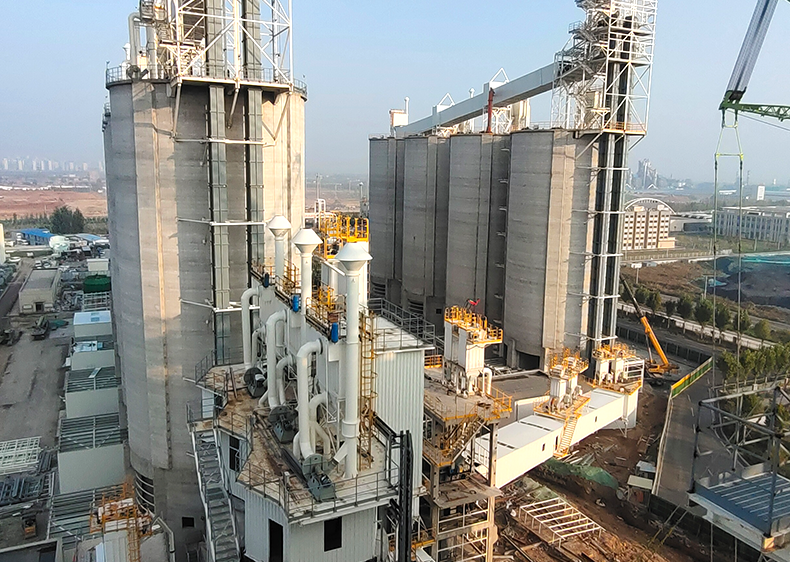

In cement production, ultrafine powder can not only improve the fluidity of cement paste, but also be mixed with a large amount of industrial solid waste (such as slag and fly ash) to promote the green transformation of the industry. This demand has driven the continuous breakthrough of cement ultrafine powder equipment technology. Recently, domestic enterprises have launched "ball mill + vertical mill combined ultrafine powder preparation equipment". Based on the characteristics of cement and solid waste materials, it optimizes the proportion of grinding media and grinding trajectory, and can crush materials into ultrafine powder with a specific surface area of 600-800m²/kg.​ After this equipment was applied in a cement enterprise, the slag mixing amount increased from 30% to 50%, the clinker consumption per ton of cement was reduced by 150kg, and the 3-day compressive strength of cement increased by 4MPa. The 28-day compressive strength increased by 6MPa. This not only reduces the cost of raw materials but also improves the competitiveness of cement products. According to industry data, the market demand for domestic cement ultrafine powder equipment increased by 30% year-on-year in 2024. It is expected that the high growth will continue in the future, promoting the further improvement of the resource utilization rate of solid waste in the cement industry.
